Entra ID: Extract Managers and Direct Reports via Graph API

Introduction: Why Revisit Hierarchy Management in Entra ID

In any enterprise Microsoft 365 environment, faithful modeling of managerial hierarchies in Microsoft Entra ID (formerly Azure Active Directory) is a fundamental prerequisite for many scenarios: automated provisioning, approval workflows, conditional access policies based on organizational role, or HR dashboards. Yet extracting this data reliably and efficiently via the API remains an exercise that hides several subtleties.

This article replaces historical approaches based on the Azure AD PowerShell module (now deprecated) and the Get-User cmdlet from Exchange Online. We will explore in depth how to leverage Microsoft Graph API via the Microsoft.Graph module for PowerShell to produce a structured report of managers and their direct reports.

Essential Prerequisite

The relevance of this report depends entirely on the quality of data in Entra ID. The manager attribute must be correctly populated for each user account, either via synchronization from an on-premises Active Directory (Azure AD Connect / Entra Connect) or via a provisioning API (SCIM, HR-driven provisioning from Workday or SAP SuccessFactors).

Architecture of the Microsoft Graph API Approach

Understanding the Data Model for Hierarchy in Entra ID

In the Entra ID object schema, the manager/direct reports relationship is modeled as follows:

Each user object has a navigation property manager that points to another object of type directoryObject.
The inverse collection directReports lists all users whose manager property points to the current user.
These properties are not returned by default in standard GET requests on the /users endpoint: they require an expansion operation ($expand) or a dedicated call.

The relevant Microsoft Graph endpoints are:

GET /users/{id}/manager — returns a user's manager
GET /users/{id}/directReports — returns the list of direct reports
GET /users?$expand=manager — returns users with their manager in a single request

Required Microsoft Graph Permissions

To execute the scripts presented in this article, the service principal or user account must have the following permissions:

User.Read.All (Application or Delegated) — reading user profiles
Directory.Read.All (Application or Delegated) — reading directory relationships, including managerial hierarchy

Recommended Authentication

For administration scripts executed in non-interactive mode (scheduled tasks, CI/CD pipelines), prioritize an App Registration with Application-type permissions and an X.509 certificate for authentication, rather than interactive user credentials.

First Approach: Individual Iteration Over Each Account

The most intuitive method consists of retrieving all licensed user accounts, then calling the Get-MgUserDirectReport cmdlet for each one. Here is the complete implementation:

⚡PowerShell

1# Connect to Microsoft Graph with necessary scopes
2Connect-MgGraph -Scopes "User.Read.All", "Directory.Read.All"
3
4[array]$ManagersWithReports = @()
5
6# Retrieve licensed member accounts with server-side filter
7[array]$Users = Get-MgUser `
8    -Filter "assignedLicenses/`$count ne 0 and userType eq 'Member'" `
9    -ConsistencyLevel Eventual `
10    -CountVariable Count `
11    -All `
12    -PageSize 500
13
14Write-Host "Total licensed users found: $Count"
15
16ForEach ($User in $Users) {
17    $Reports = Get-MgUserDirectReport -UserId $User.Id -ErrorAction SilentlyContinue
18    if ($Reports) {
19        $ManagersWithReports += [PSCustomObject]@{
20            DisplayName       = $User.DisplayName
21            UserPrincipalName = $User.UserPrincipalName
22            DirectReports     = $Reports.Count
23        }
24    }
25}
26
27$ManagersWithReports | Sort-Object DirectReports -Descending | Format-Table DisplayName, DirectReports

Example output:

±Diff(auto)

1DisplayName                                DirectReports
2-----------                                -------------
3Kim Akers (She/Her)                                   17
4James Ryan                                            11
5Brian Weakliam (Operations)                            3
6Paul Robichaux (Office 365 for IT Pros)                1
7René Artois                                            1
8Chris Bishop                                           1
9Tony Redmond                                           1
10Andy Ruth (Project Director)                           1

Performance Issue

This approach generates N+1 API calls (one to retrieve users, then one per user for their direct reports). On a tenant with 10,000 accounts, this represents up to 10,001 HTTP requests to Microsoft Graph, which significantly impacts execution time and can trigger throttling mechanisms (HTTP 429). This method is acceptable only for organizations with fewer than 500 users.

Optimized Approach: Single Pass with Property Expansion

Principle of `$expand` on the Manager Property

Microsoft Graph supports the $expand operation to resolve navigation properties in a single request. Rather than calling the manager endpoint separately for each user, we can instruct Graph to populate the Manager property when retrieving users:

⚡PowerShell

1# Single pass with Manager property expansion
2[array]$Users = Get-MgUser `
3    -Filter "userType eq 'Member'" `
4    -ExpandProperty Manager `
5    -Select "Id, displayName, Manager, assignedLicenses" `
6    -All `
7    -PageSize 500 | Where-Object { $_.AssignedLicenses.Count -ne 0 }

Why This Two-Step Filter?

There is a known limitation of Microsoft Graph API: the /users endpoint does not support the combination of a complex filter on collection properties (such as assignedLicenses/$count ne 0) with an $expand operation on a navigation property. This constraint generates a 400 Bad Request error.

The adopted strategy is therefore as follows:

Server-side filter: userType eq 'Member' — eliminates all guest accounts (Guest), which often represent the largest volume in tenants with strong external collaboration.
Client-side filter: Where-Object { $_.AssignedLicenses.Count -ne 0 } — eliminates member accounts without licenses (service accounts, disabled accounts, etc.).

This strategy minimizes the volume of data transferred from Graph while working around the API limitation.

Structure of the Returned Manager Object

After expansion, the Manager property of each user object contains:

⚡PowerShell

1$Users[0].Manager | Format-List
2
3DeletedDateTime      :
4Id                   : d36b323a-32c3-4ca5-a4a5-2f7b4fbef31c
5AdditionalProperties : {[@odata.type, #microsoft.graph.user],
6                        [accountEnabled, True],
7                        [businessPhones, System.Object[]],
8                        [city, NYC]…}

The AdditionalProperties field contains a dictionary of additional properties of the manager account. To access the display name of the manager, for example:

⚡PowerShell

1$ManagerDisplayName = $Users[0].Manager.AdditionalProperties['displayName']
2$ManagerUPN         = $Users[0].Manager.AdditionalProperties['userPrincipalName']
3$ManagerDepartment  = $Users[0].Manager.AdditionalProperties['department']

Complete Report Generation Script

Here is the complete production script, with error handling, CSV export and structured display:

⚡PowerShell

1#Requires -Modules Microsoft.Graph.Users
2
3<#
4.SYNOPSIS
5    Generates a report of managers and their direct reports from Entra ID.
6.DESCRIPTION
7    Uses Microsoft Graph API (single pass with $expand) to extract
8    hierarchical relationships of licensed member accounts.
9.NOTES
10    Required permissions: User.Read.All, Directory.Read.All
11    Version: 2.0 | Date: 2025
12#>
13
14# --- Connect to Microsoft Graph ---
15Connect-MgGraph -Scopes "User.Read.All", "Directory.Read.All" -NoWelcome
16
17Write-Host "Retrieving member users with manager expansion..." -ForegroundColor Cyan
18
19# --- Single pass: server-side filtering + manager expansion ---
20[array]$AllUsers = Get-MgUser `
21    -Filter "userType eq 'Member'" `
22    -ExpandProperty Manager `
23    -Select "Id, displayName, userPrincipalName, department, jobTitle, Manager, assignedLicenses" `
24    -All `
25    -PageSize 500 | Where-Object { $_.AssignedLicenses.Count -ne 0 }
26
27Write-Host "Licensed users found: $($AllUsers.Count)" -ForegroundColor Green
28
29# --- Building the managers hash table ---
30$ManagerReport = @{}
31
32ForEach ($User in $AllUsers) {
33    if ($null -ne $User.Manager) {
34        $ManagerId          = $User.Manager.Id
35        $ManagerDisplayName = $User.Manager.AdditionalProperties['displayName']
36        $ManagerUPN         = $User.Manager.AdditionalProperties['userPrincipalName']
37
38        if (-not $ManagerReport.ContainsKey($ManagerId)) {
39            $ManagerReport[$ManagerId] = [PSCustomObject]@{
40                ManagerId          = $ManagerId
41                ManagerName        = $ManagerDisplayName
42                ManagerUPN         = $ManagerUPN
43                DirectReportsCount = 0
44                DirectReports      = [System.Collections.Generic.List[string]]::new()
45            }
46        }
47        $ManagerReport[$ManagerId].DirectReportsCount++
48        $ManagerReport[$ManagerId].DirectReports.Add($User.DisplayName)
49    }
50}
51
52# --- Formatting and displaying the report ---
53$ReportOutput = $ManagerReport.Values | Sort-Object DirectReportsCount -Descending
54
55$ReportOutput | Format-Table ManagerName, ManagerUPN, DirectReportsCount -AutoSize
56
57# --- CSV Export ---
58$CsvPath = ".\ManagersReport_$(Get-Date -Format 'yyyyMMdd_HHmmss').csv"
59$ReportOutput | Select-Object ManagerName, ManagerUPN, DirectReportsCount,
60    @{N='DirectReportsList'; E={ $_.DirectReports -join '; ' }} | Export-Csv -Path $CsvPath -NoTypeInformation -Encoding UTF8
61
62Write-Host "Report exported: $CsvPath" -ForegroundColor Green

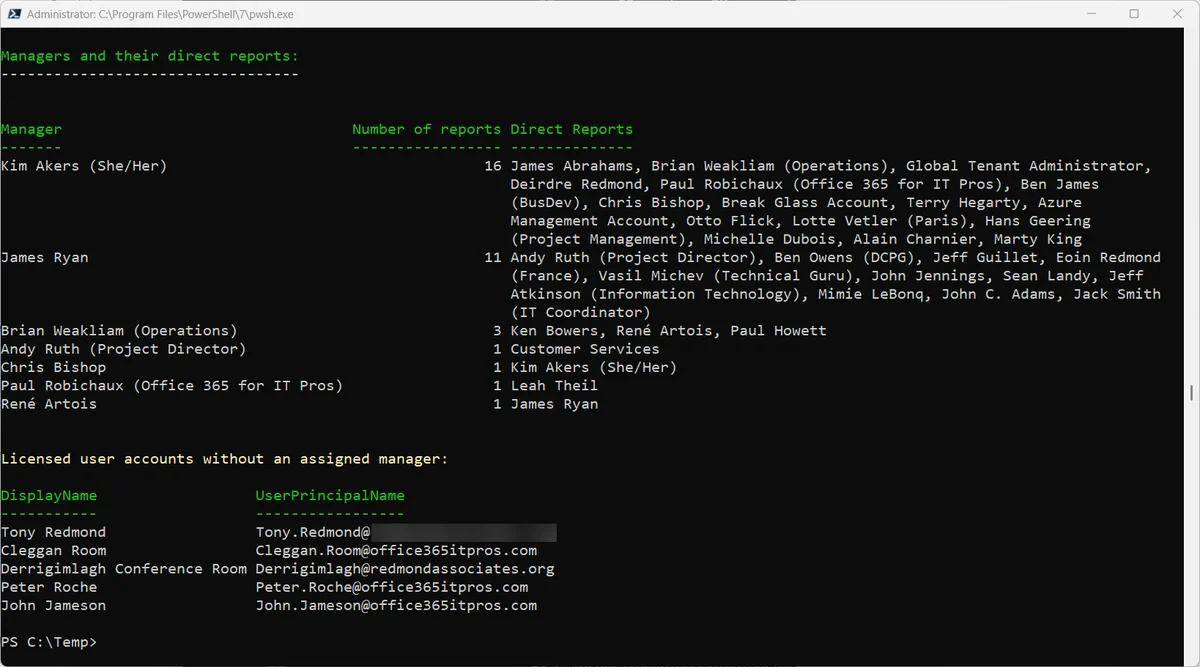

Reporting managers and direct reports from Entra ID.

Optimization for Large Tenants

For organizations with more than 50,000 accounts, consider using Microsoft Graph SDK with batch requests ($batch) to parallelize calls, or export data via Microsoft Entra ID Governance and Access Reviews which natively expose hierarchical data.

Comparison of Available Approaches

Approach	Module/Tool	API Calls	Performance	Status
Get-AzureADUserDirectReports	AzureAD PowerShell	N+1	Low	Deprecated
Get-User (Exchange Online)	ExchangeOnlineManagement	N+1	Low	Functional
Get-MgUserDirectReport (iterative)	Microsoft.Graph	N+1	Low	Functional
Get-MgUser -ExpandProperty Manager	Microsoft.Graph	Single pass	High	Recommended

Going Further: Native Graph API Query (REST)

For integration scenarios with third-party systems (Logic Apps, Azure Functions, Power Automate), here is the equivalent of the PowerShell query as a direct REST call:

>_Bash

1GET https://graph.microsoft.com/v1.0/users
2    ?$filter=userType eq 'Member'
3    &$expand=manager($select=id,displayName,userPrincipalName)
4    &$select=id,displayName,userPrincipalName,department,assignedLicenses
5    &$top=999
6    &$count=true
7ConsistencyLevel: eventual

And its PowerShell equivalent via Invoke-MgGraphRequest for full control over the request:

⚡PowerShell

1$Uri = "https://graph.microsoft.com/v1.0/users" +
2       "?`$filter=userType eq 'Member'" +
3       "&`$expand=manager(`$select=id,displayName,userPrincipalName)" +
4       "&`$select=id,displayName,userPrincipalName,assignedLicenses" +
5       "&`$top=999&`$count=true"
6
7$Headers = @{ "ConsistencyLevel" = "eventual" }
8
9$Response = Invoke-MgGraphRequest -Uri $Uri -Headers $Headers -Method GET
10$Users    = $Response.value
11
12# Manual pagination if necessary
13while ($Response.'@odata.nextLink') {
14    $Response = Invoke-MgGraphRequest -Uri $Response.'@odata.nextLink' -Method GET
15    $Users   += $Response.value
16}

ConsistencyLevel: eventual

The ConsistencyLevel: eventual header is mandatory when using $count or advanced filter operators like $count ne 0 on collection properties. Without this header, Graph returns a 400 error. This header indicates to the API that you accept slight replication latency of data between service nodes.

Best Practices for Maintaining Hierarchical Data Quality

A managers/direct reports report is only relevant if source data is reliable. Here are architectural recommendations for maintaining quality:

Synchronization from on-premises AD: if you use Microsoft Entra Connect Sync, verify that the manager attribute is included in synchronization rules (AD schema manager attribute corresponds to manager in Entra ID).
HR-driven provisioning: with Entra ID Provisioning connected to Workday or SAP SuccessFactors, explicitly map the manager attribute in the provisioning configuration.
Regular audits: schedule monthly script execution to detect accounts without a manager ($_.Manager -eq $null) that signal missing data.
Access Reviews: configure Microsoft Entra Access Reviews so managers periodically validate access for their direct reports — this process also forces updates to hierarchical relationships.

Accounts Without Manager

Users whose manager property is null will not be included in anyone's direct reports. In automated workflows (e.g., offboarding, alert escalation), absence of a manager can block critical processes. Implement proactive alerting on licensed accounts without an assigned manager.
