DLP SharePoint & OneDrive: Advanced External Sharing Controls

Introduction: Towards Granular Control of External Sharing in Microsoft 365

Managing external sharing in Microsoft 365 has long relied on global controls at the tenant or SharePoint site level. With the growing demand for targeted collaboration, this monolithic approach is reaching its limits. Microsoft addresses this challenge by introducing two new actions within the Data Loss Prevention (DLP) policies of Microsoft Purview, referenced under message center MC1338823 and Roadmap item #557191, under the title Block external domain or user access for SharePoint and OneDrive.

These new actions, currently in preview, allow action at the item level (file), providing much finer control than existing sharing settings.

Scope of Application: SPO/ODFB DLP Policies Only

Before proceeding further, it is essential to understand the scope in which these new actions operate. The parent action Restrict access or encrypt the content in Microsoft 365 locations exposes the new controls only when the DLP policy is scoped exclusively to SharePoint Online (SPO) and/or OneDrive for Business (ODFB).

This concretely means that:

• Multi-service DLP policies (Exchange + SPO, for example) will not display these new options.
• You will need to either create a new DLP policy dedicated to SPO/ODFB or modify an existing policy limited to these workloads.
• Internal users cannot be blocked by these actions — only external access is affected.

The Two New Actions Available

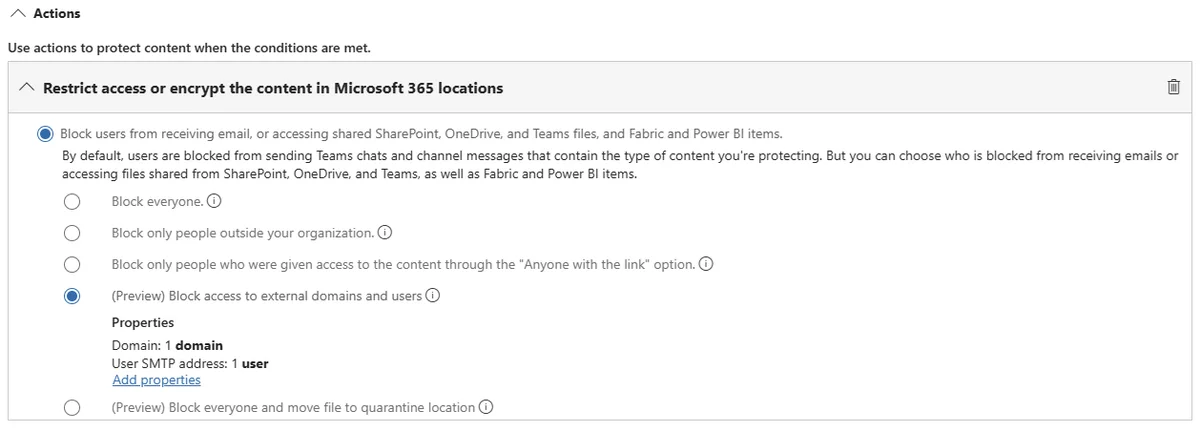

Once the policy is properly scoped, two new actions appear when configuring rules:

Action 1: Block access to external domains and users

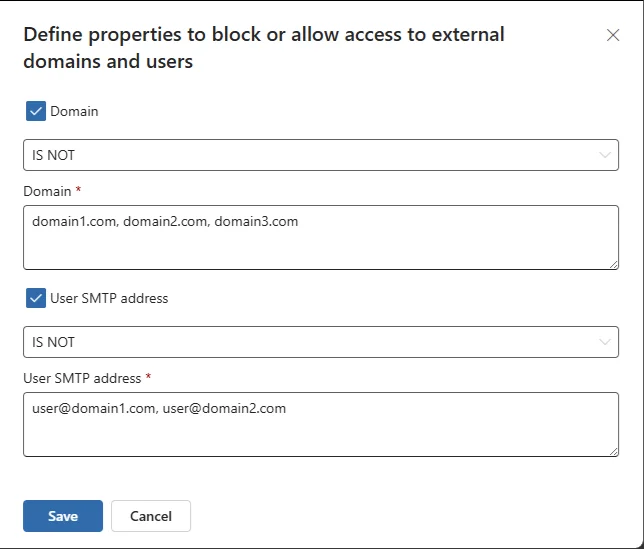

This first action allows you to restrict file sharing by targeting specific external domains and/or individual SMTP addresses. It offers two modes of operation:

• Blocklist mode (IS): listed domains and users are denied access.
• Allowlist mode (IS NOT): all external sharing is blocked, except for listed domains and users.

Action 2: Block everyone and move file to the quarantine location

This second action takes a more radical approach: it revokes all access to the file in question and moves it to a quarantine location defined beforehand. This behavior is analogous to the Admin Quarantine functionality of Microsoft Defender for Cloud Apps.

The quarantine location is configured from:

• Microsoft Purview portal > Settings > Data Loss Prevention settings > File quarantine
• Or directly via the link available in the action configuration.

Step-by-Step Configuration of a DLP Policy with New Actions

Inspecting Rules via PowerShell

Although creating rules with these new actions is not yet available via PowerShell (the corresponding parameters are not exposed by New-DlpComplianceRule), it is possible to inspect the properties of an existing rule with the following command:

1Get-DlpComplianceRule -Policy "SPO" | Select-Object Quarantine, BlockDomainsOrUsers, BlockDomains, BlockDomainsExcept, BlockUsers, BlockUsersExcept, RestrictAccess, SPMoveToQuarantineLocation, AdvancedRule

Example output:

1Quarantine                 : False
2BlockDomainsOrUsers        : True
3BlockDomains               : {}
4BlockDomainsExcept         : {contoso.com}
5BlockUsers                 : {}
6BlockUsersExcept           : {john.doe@contoso.com}
7RestrictAccess             :
8SPMoveToQuarantineLocation : False
9AdvancedRule               : {
10                               "Version": "1.0",
11                               "Condition": {
12                                 "Operator": "And",
13                                 "SubConditions": [
14                                   {
15                                     "ConditionName": "ContentExtensionMatchesWords",
16                                     "Value": [
17                                       "docx",
18                                       "xlsx",
19                                       "pptx",
20                                       "pdf"
21                                     ]
22                                   }
23                                 ]
24                               }
25                             }

In this example, the rule is triggered when a .docx, .xlsx, .pptx or .pdf file is shared with any external domain or user, except contoso.com and the user john.doe@contoso.com.

Behavior on the End User Side

Domain/User Blocking Action

When a user attempts to share a file with a recipient matching the blocking condition, the relevant entries are simply removed from the sharing list without clear notification. If the recipient is part of the authorized entities, sharing proceeds normally.

Quarantine Action

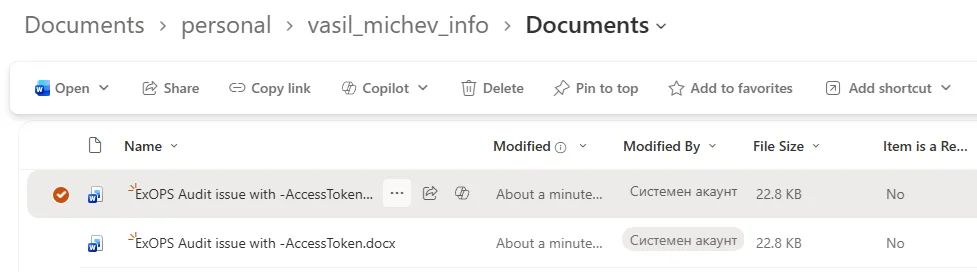

When the quarantine rule is triggered:

1. All access to the file is revoked.
2. The file is copied to the quarantine location, in a directory structure reflecting the original path (e.g., user_domain_com > Documents).

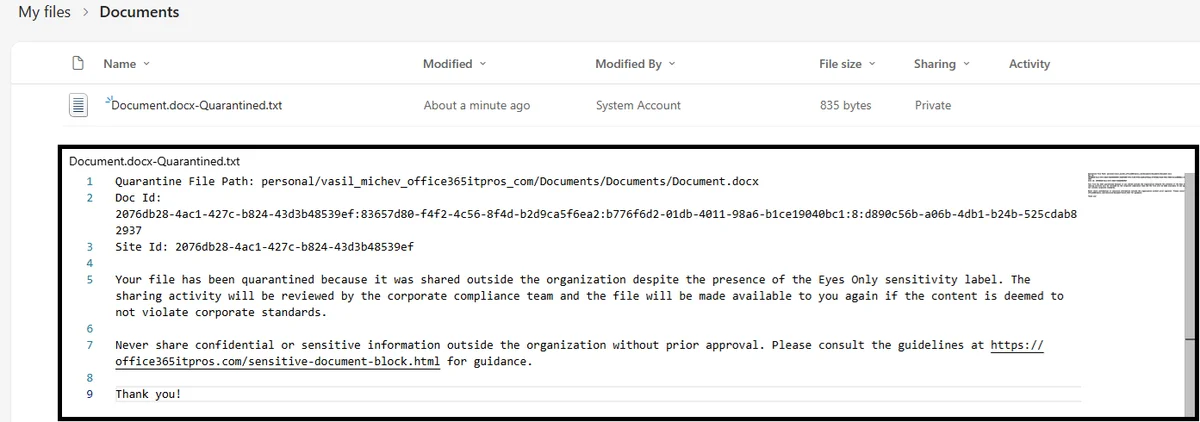

3. The original file is replaced with a .txt file whose content corresponds to the message configured in the quarantine settings.

Absence of Policy Tips and Overrides

It is currently not possible to configure policy tips (notifications in the user interface) or overrides (ability for users to justify and bypass the rule) for these two new actions. This limitation can generate confusion among users, particularly with the quarantine action which may give the impression that files have "disappeared".

Managing Alerts and Incident Reports

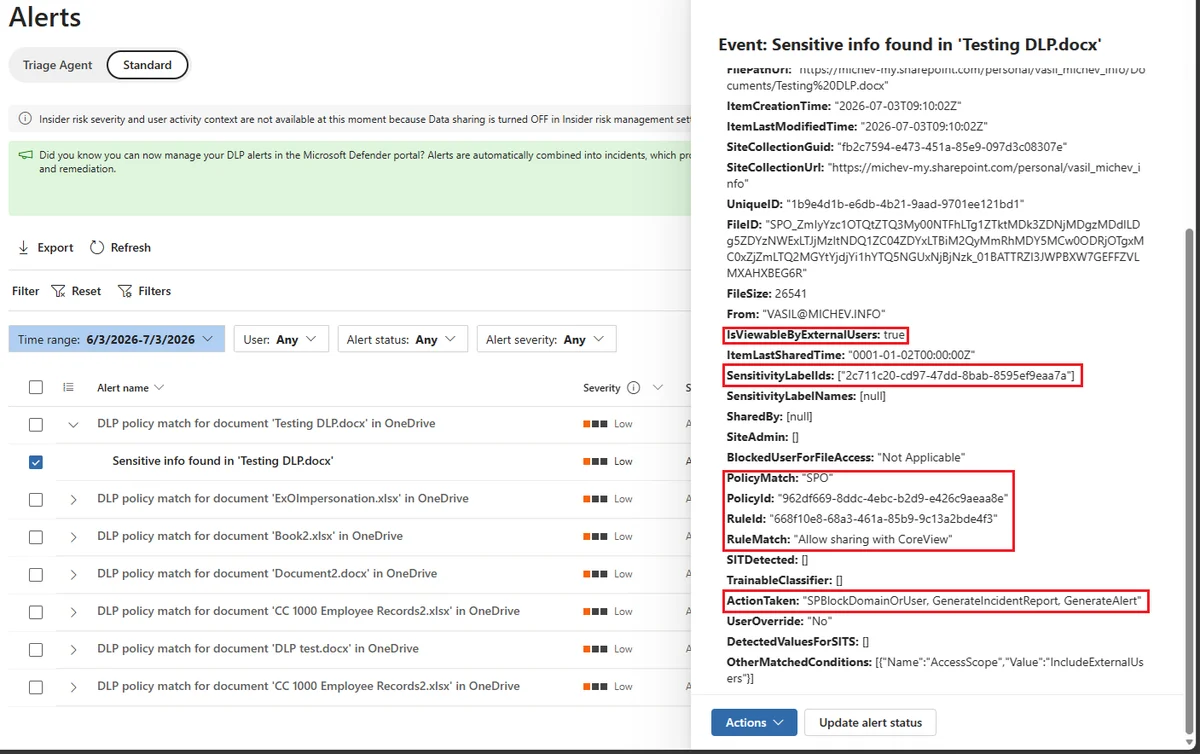

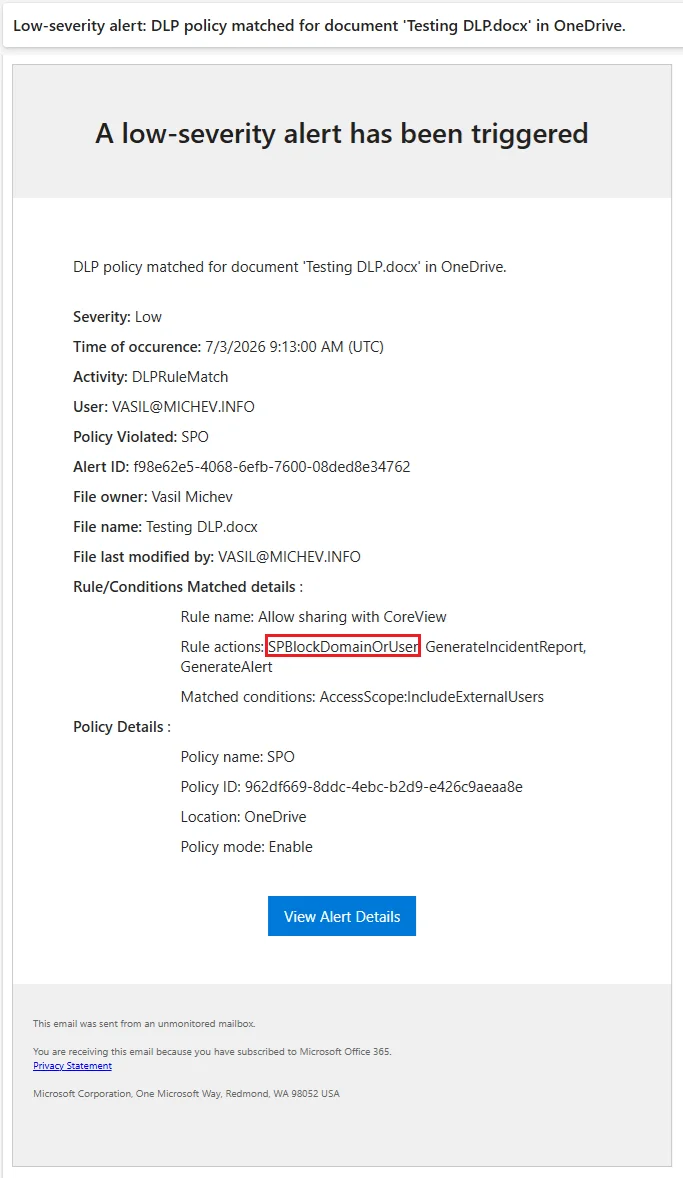

Monitoring policy triggering relies on the same mechanisms as existing DLP policies: alerts in the Purview portal and incident reports by email. The administrator experience therefore remains consistent with existing workflows.

Comparison with Existing Sharing Controls

Points of Attention and Best Practices

Interaction with Sensitivity Labels

Files protected by sensitivity labels with encryption retain their own permissions logic. Even if a DLP rule allows a domain via the IS NOT condition, the label permissions must explicitly include the domain or address of the recipient for the content to be accessible.

Independence of Controls

The new DLP actions operate independently of external sharing settings at the tenant level and SPO sites. They constitute an additional control layer, allowing you to secure specific files while maintaining open collaboration with certain partners.

Operational Recommendations

• Educate your users before any enforcement mode deployment, particularly for quarantine rules.
• Test in simulation mode (Audit only) before enabling blocking or quarantine actions.
• Restrict access to the quarantine site to a limited group of administrators and compliance officers.
• Document the recovery process for users whose files are quarantined.
• Wait after creating or modifying a policy before validating its behavior — synchronization may require several hours.

Official References

• Microsoft Purview DLP Documentation
• Configure DLP Policies for SharePoint and OneDrive
• Admin Quarantine in Microsoft Defender for Cloud Apps
• Get-DlpComplianceRule Cmdlet
• SharePoint Online External Sharing Controls
• Microsoft 365 Roadmap #557191

Conclusion

The introduction of these two new DLP actions for SharePoint Online and OneDrive for Business represents a significant advance in granular management of external sharing within Microsoft 365. The ability to block or quarantine specific files based on domain or user criteria fills a real gap compared to existing global controls.

Nevertheless, the lack of support for policy tips and overrides, combined with some inconsistencies observed in preview, invites a gradual and controlled adoption. Monitor general availability announcements and official documentation updates to integrate these controls into your information protection strategy.
